For the number one aluminum racing wheel for performance, weight reduction, and durability choose Vahlco. Vahlco Aluminum Racing Wheels specializes in racing applications and supplies the top racing teams with the performance gains that help edge out the competition. Our aluminum research, development, and supply are at the top of any list when it comes to aluminum racing wheels.



13 inch midget wheels

midget hub
forRacerbyRacers racing wheels



midget wheels

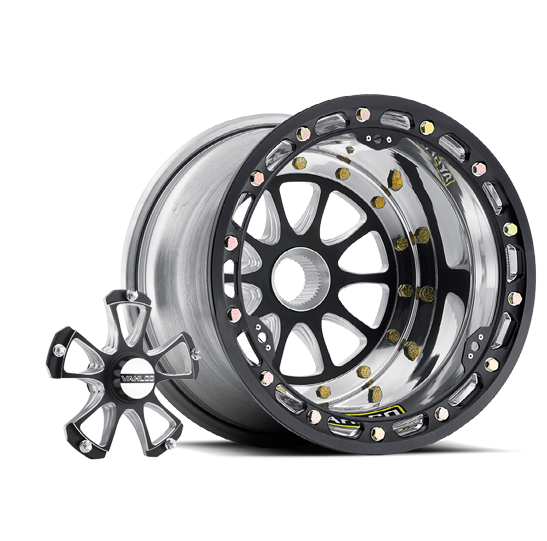

Vahlco 13” direct mount hubs are 5-spoke design with 5 mounting studs for the wheel shells.

All front hubs are machined to accept tapered roller bearings, have threaded and O-ringed dust caps with a threaded fill port on the side for customers who want to run oil or gear lube instead of bearing grease.

Vahlco 13” dia. direct mount front shells are made on even size width increments (6”, 7”, 8”, etc.)

Vahlco uses an aluminum CNC spun 3-button dzus-on mud cover that fully covers the beadlock bolts and wraps around the outside edge of the beadlock ring.






information mircro hubs racing
midget pricing racing wheels

 midget pricing racing wheels aluminum

13 inch midget wheel parts

We offer direct mount front wheel shells (sometimes called front shells, front rims, or “860” shells) without center hubs, direct mount front hubs, and rear spline wheels. We currently do not offer any wheels with 4-pin (4 x 4.00” BC) or 6-pin (6 x 5.00” BC) centers. We don’t currently offer any sizes that will fit on sport compact or import drag racing applications. Since our 13” rim shells come with the industry standard 15 bolt pattern, we chose to use the stronger 5-spoke configuration for 13”. All front hubs are machined to accept tapered roller bearings, have threaded and O-ringed dust caps with a threaded fill port on the side for customers who want to run oil or gear lube instead of bearing grease.

All mounting hardware is domestically sourced grade 8 steel fasteners. Bearings, races and seals are included in the price of each hub. Hubs are priced individually, price x2 for full hub set. All hubs come with our proprietary “cam drive” rotor mount system to accept standard 3-lug brake rotors for LF dirt applications (adapter sold separately). Most customers will only need one adapter for the LF. 3-lug rotor mount racer price is $20.00. Vahlco 13” dia. direct mount front shells are made on even size width increments (6”, 7”, 8”, etc.) and use compatible bolt patterns and ID bores to other competitors’ wheels (15 x 9.75” bolt circle, 9.030” rim half ID bore).

Vahlco offers front wheel shells in all common sizes from 7” to 8” wide with non-beadlock (NBL), non beadlock with dzus-on cover (NBL w/ Cover), outer beadlock (OBL) or outer beadlock with dzus-on cover (OBL w/ Cover). On all 13” midget wheels, the backspace measurement is 1” less than the actual inner half measurement (ex. 5” inner = 4” backspace wheel). Vahlco 13” product is fully compatible/interchangeable with other wheel brands rim halves and centers. Our front wheel shells are bolted together and silicone sealed for easy repair of just one half if damaged. In 2016, Vahlco introduced a new billet, 100% CNC machined weld-on beadlock ring with a tire locating step to improve tire mounting accuracy.

Vahlco 13” bolt-on beadlock rings are billet, 100% CNC machined and come black anodized standard. Vahlco beadlock bolt-on rings are not compatible/interchangeable with other wheel brands. Vahlco uses an aluminum CNC spun 3-button dzus-on mud cover that fully covers the beadlock bolts and wraps around the outside edge of the beadlock ring. ​Rear spline wheel details: Vahlco 13” dia. spline rear wheels are made on even size width increments (8”, 9”, 10”, etc.) and use compatible bolt patters and ID bores to other competitors’ wheels (15 x 9.75” BC, 9.030” rim half ID bore). Vahlco offers the most common 31 spline (sometimes called 2” spline) for all applications and can supply 36 spline (sometimes called 2 3/8” spline) for special orders.

Vahlco offers rear spline wheels in all common sizes from 8” to 12” wide with non-beadlock (NBL), outer beadlock (OBL) or outer beadlock with dzus-on cover (OBL w/ Cover). On all 13” midget wheels, the backspace measurement is 1” less than the actual inner half measurement (ex. 5” inner = 4” backspace wheel). Vahlco 13” product is fully compatible/interchangeable with other wheel brands rim halves and centers. Our rear spline wheels are bolted together and silicone sealed for easy repair of just one half if damaged. In 2016, Vahlco introduced a new billet, 100% CNC machined weld-on beadlock ring with a tire locating step to improve tire mounting accuracy. Vahlco 13” bolt-on beadlock rings are billet, 100% CNC machined and come black anodized standard.

Vahlco beadlock bolt-on rings are not compatible/interchangeable with other wheel brands.  Vahlco 13” replacement rim halves (both inner and outer halves) are made on even size width increments (3”, 4”, 5”, etc.) and use compatible bolt patters and ID bores to other competitors’ wheels (15 x 9.75” BC, 9.030” rim half ID bore). Vahlco offers replacement rim halves in all common sizes from 2” to 9” wide with non-beadlock (NBL), outer beadlock (OBL) or outer beadlock with Dzus-on cover (OBL w/ CVR).

Vahlco also offers special “bell inner” halves in 4”, 5”, and 6” widths to clear front brake applications. On all 13” midget wheels, the backspace measurement is 1” less than the actual inner half measurement (ex. 5” inner = 4” backspace wheel). Vahlco 13” product is fully compatible/interchangeable with other wheel brands rim halves and centers. All Vahlco 13” wheels are bolted together and silicone sealed for easy repair of just one half if damaged. In 2016, Vahlco introduced a new billet, 100% CNC machined weld-on beadlock ring with a tire locating step to improve tire mounting accuracy. Vahlco 13” bolt-on beadlock rings are billet, 100% CNC machined and come black anodized standard.

Vahlco beadlock bolt-on rings are not compatible/interchangeable with other wheel brands. Vahlco uses an aluminum CNC spun 3-button dzus-on mud cover that fully covers the beadlock bolts and wraps around the outside edge of the beadlock ring. All individual parts for rim halves, centers, beadlock rings or mud covers can be purchased separately in kit form such as bolt kits, inserts, dzus buttons, bearing kits, dust caps for front hubs. If it was supplied on a wheel, we can supply replacement parts in some form.
